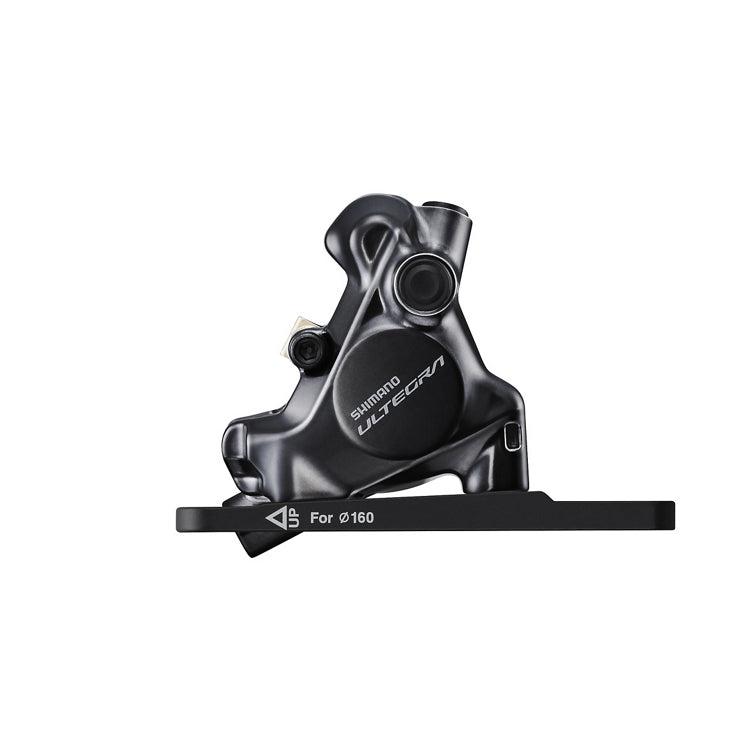

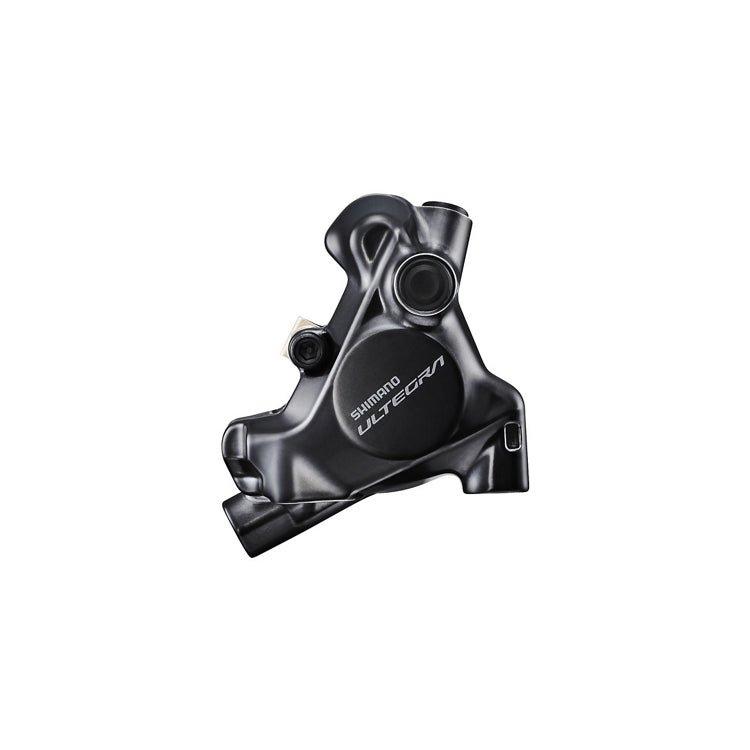

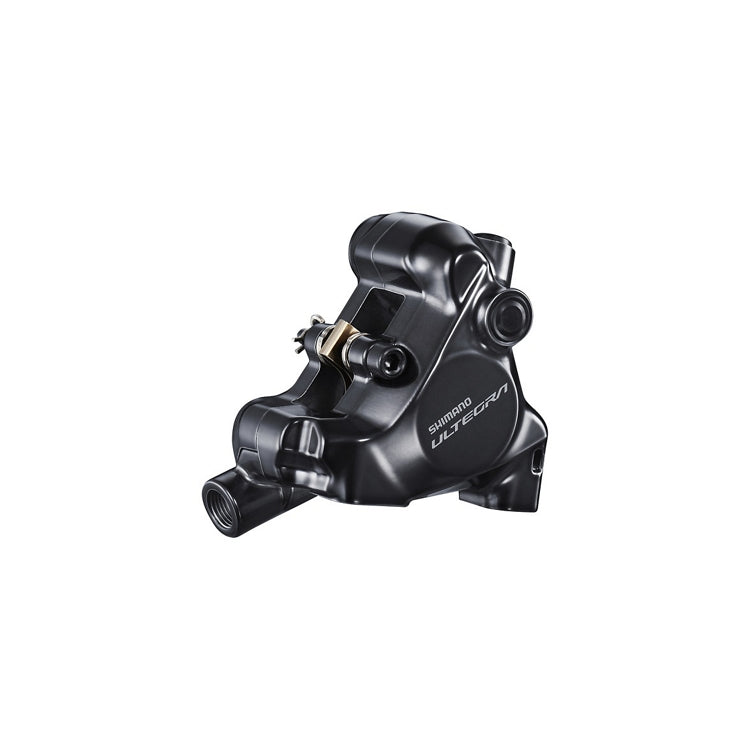

Shimano Ultegra BR-R8170 Hydraulic Disc Brake Caliper (Flat Mount w/Bracket w/L03A)
Specifications
| Model No. | BR-R8170 |
|---|---|
| Series | ULTEGRA R8100 Series |
| Color | Series color |
| Average weight | 146g (Front) / 136g (Rear) |
| Ice Technologies pad compatible caliper | Yes |
| Brake hose color (kit) | Black |
| Brake hose (Kit) | SM-BH90-JK-SSR |
| Brake type | Hydraulic disc brake |
| Caliper fixing bolt Anti loosen method | Bolt fix pin / snap ring |
| Caliper fixing bolt Tool size | 4 mm |
| Fixing screw spec for rear mount 10mm mount | Yes |
| Fixing screw spec for rear mount 15mm mount | Yes |
| Fixing screw spec for rear mount 20mm mount | Yes |
| Fixing screw spec for rear mount 25mm mount | Yes |
| Fixing screw spec for rear mount 30mm mount | Yes |
| Fixing screw spec for rear mount 35mm mount | Yes |
| Hose joint | Straight |
| Mount type | Flat mount |
| One way bleeding | Yes |
| Pad mount | Pad axle |
| Piston | 2 |
| Recommended brake lever | ST-R8170 |
| Recommended disc brake rotor | RT-MT800 |
| J-Kit spec (for OEM) | Yes |
| Oil | Shimano Mineral |
| Pad Option 1 | L04C Metal |
| Pad Standard 1 | K03S Resin |
| Pad Standard 2 | L03A Resin |
