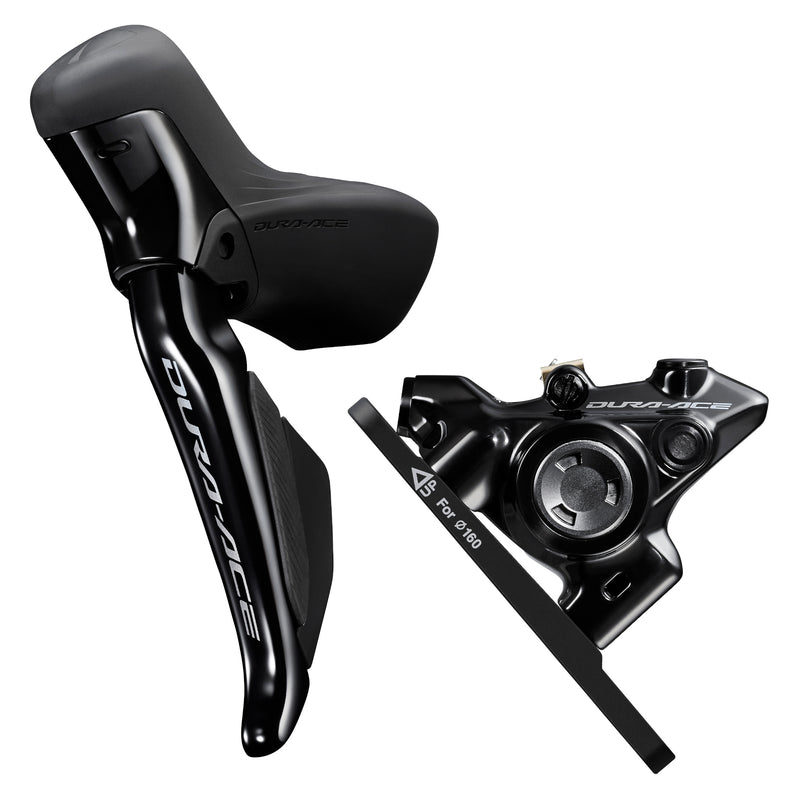

BR-R9270 Brake Caliper K05Ti-RX Resin Pads (w/o fin) & ST-R9270 Shift / Brake Lever

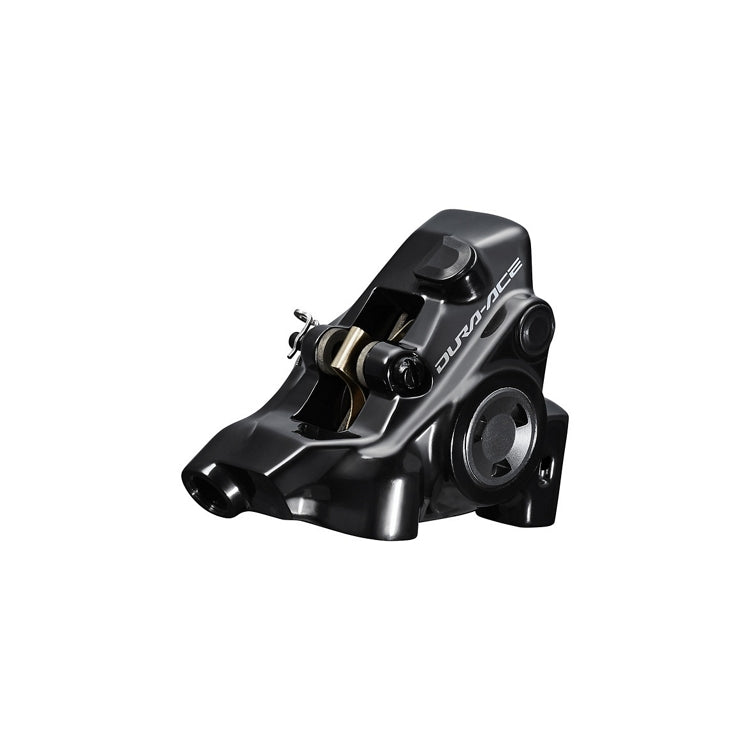

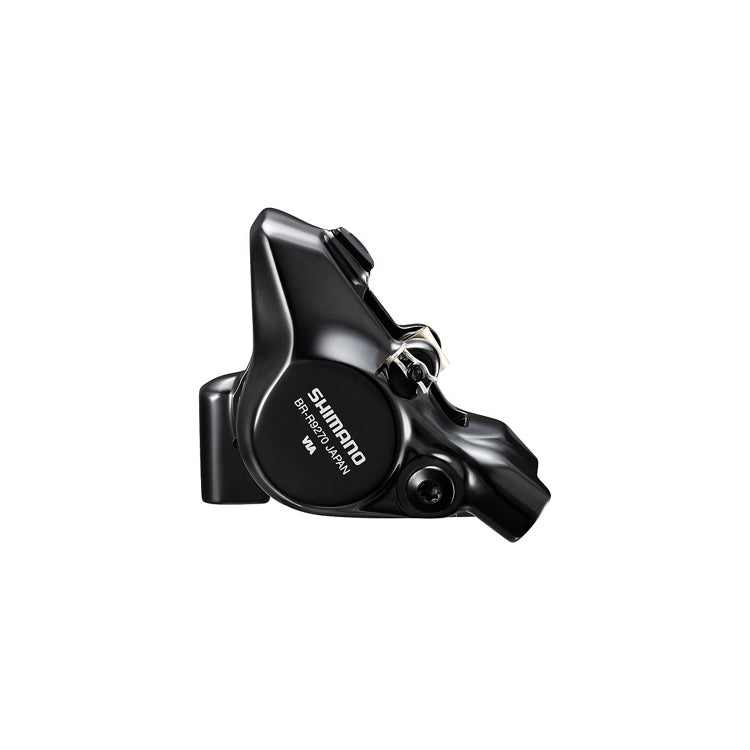

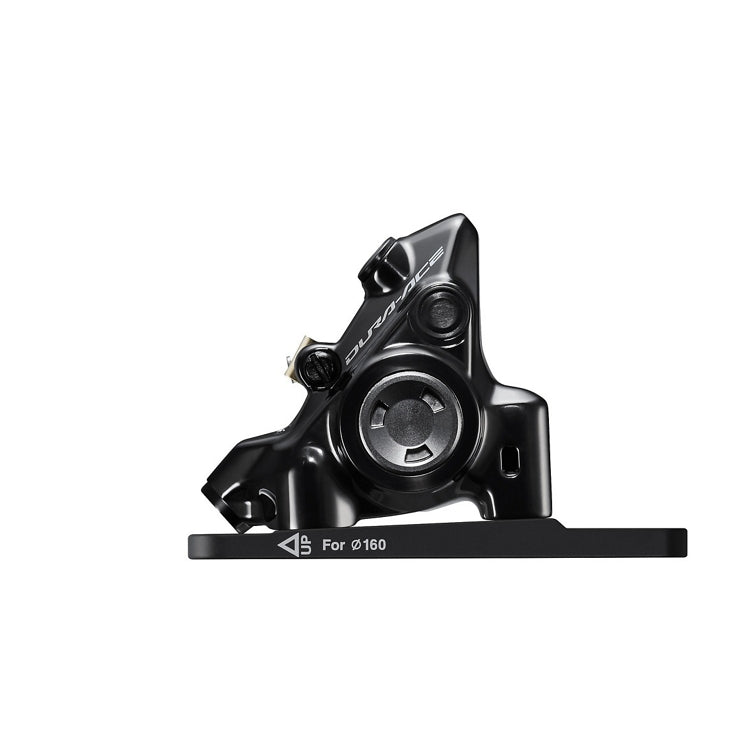

Shimano Dura-Ace BR-R9270 Hydraulic Disc Brake Caliper
| Model No. | BR-R9270 |
|---|---|
| Series | DURA-ACE R9200 Series |
| Color | Series color |
| Average weight | 97g |
| Ice Technologies pad compatible caliper | Yes |
| Brake hose color (kit) | Black |
| Brake hose (Kit) | SM-BH90-JK-SSR |
| Brake type | Hydraulic disc brake |
| Caliper fixing bolt Anti loosen method | Screw fixing pin / snap ring |
| Caliper fixing bolt Tool size | 4 mm |
| Caliper mono-body | Yes |
| Fixing screw spec for rear mount 10mm mount | Yes |
| Fixing screw spec for rear mount 15mm mount | Yes |
| Fixing screw spec for rear mount 20mm mount | Yes |
| Fixing screw spec for rear mount 25mm mount | Yes |
| Fixing screw spec for rear mount 30mm mount | Yes |
| Fixing screw spec for rear mount 35mm mount | Yes |
| Hose joint | Straight |
| Mount type | Flat mount |
| One way bleeding | Yes |
| Pad mount | Pad axle |
| Piston | 2 |
| Recommended brake lever | ST-R9270 / ST-R9180 |
| Recommended disc brake rotor | RT-MT900 |
| J-Kit spec (for OEM) | Yes |
| Oil | SHIMANO Mineral |
| Pad Option 1 | K04Ti-MX Metal (w/o fin) |
| Pad Option 2 | L04C-MF Metal (w/ fin) |
| Pad Standard 1 | K05Ti-RX Resin (w/o fin) |
| Pad Standard 2 | L05A-RF Resin (w/ fin) |

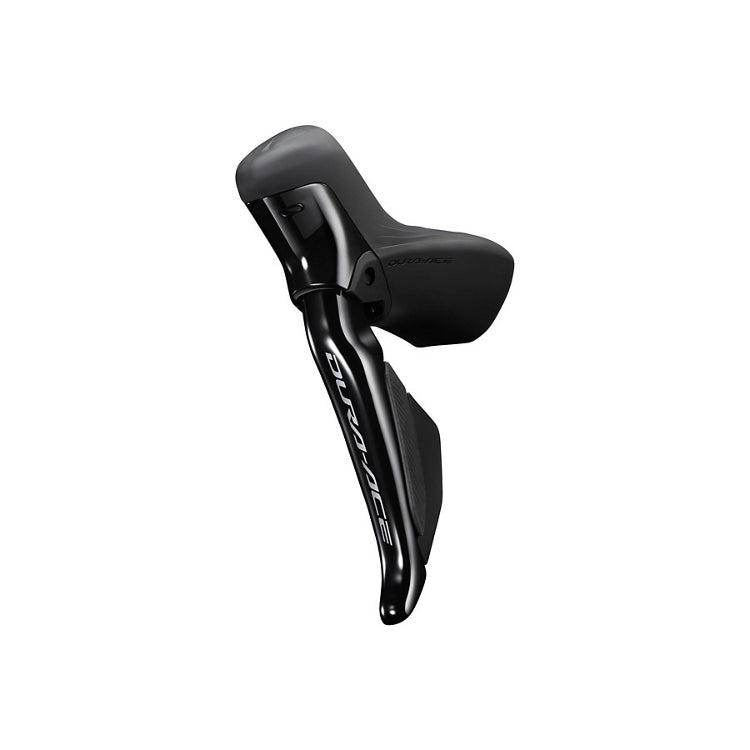

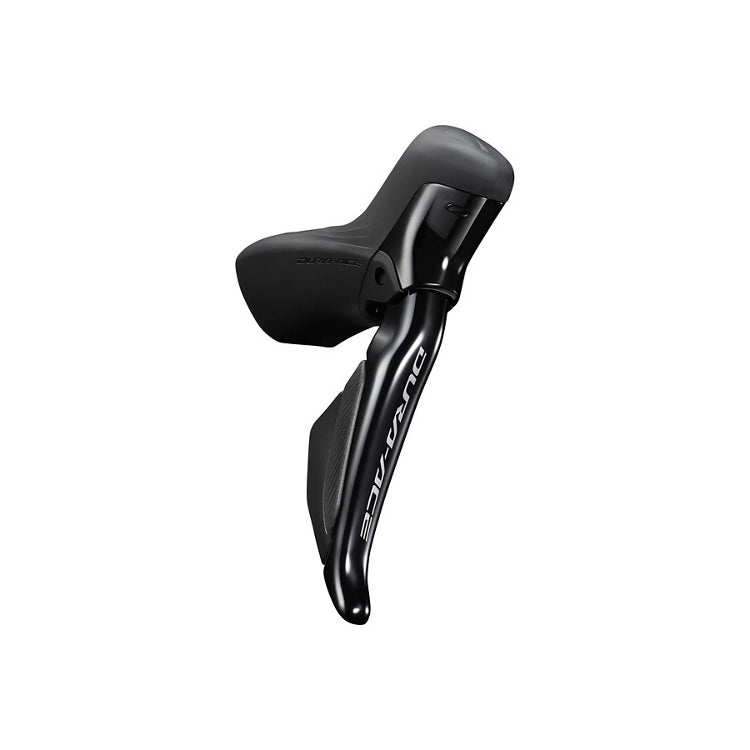

Shimano Dura-Ace Di2 ST-R9270 Hydraulic Disc Brake Dual Control Lever
| Model No. | ST-R9270 |
|---|---|
| Series | DURA-ACE R9200 Series |
| Color | Series color |
| Average weight | 350g (/pair) |
| Firmware update by E-TUBE Project | Yes |
| Remote switch | Yes |
| Port for remote sprinter shifter (pcs) | 0 |
| Brake lever Clamp band (mm) | 23.8-24.2 |
| Brake lever Reach adjust | Yes |
| Brake lever Brake fluid Shimano mineral oil | Shimano Mineral |
| Brake lever specifications brake hose color (kit) | Black |
| Brake lever free stroke adjust | Yes |
| Brake lever recommended brake caliper | BR-R9270 |
| Brake lever servo wave | Yes |
| Brake lever brake hose (Kit) | SM-BH90-JK-SSR |
| Brake lever funnel bleeding | Yes |
| Brake lever hose joint | Straight |
| Shifter type | Dual control lever |
| Battery | CR1632 |
| Di2 connectivity wired Di2 shifting | Yes |
| Di2 connectivity wireless Di2 shifting | Yes |
| Port for SD300 satellite shifter (pcs) | 1 |
| SD300 connector (pcs) | 0 |
| SD300 port (pcs) | 1 |
| SD50 connector (pcs) | 0 |
| SD50 port (pcs) | 0 |
