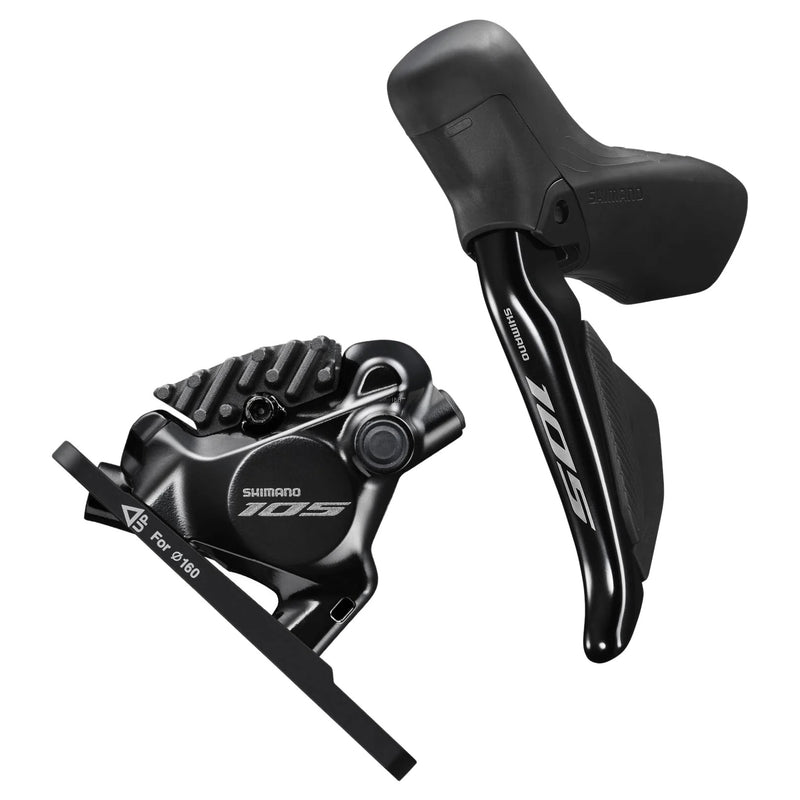

BR-R7170 Brake Caliper w/K05S-RX Resin Pads (w/o fin) & ST-R7170 Shift / Brake Lever

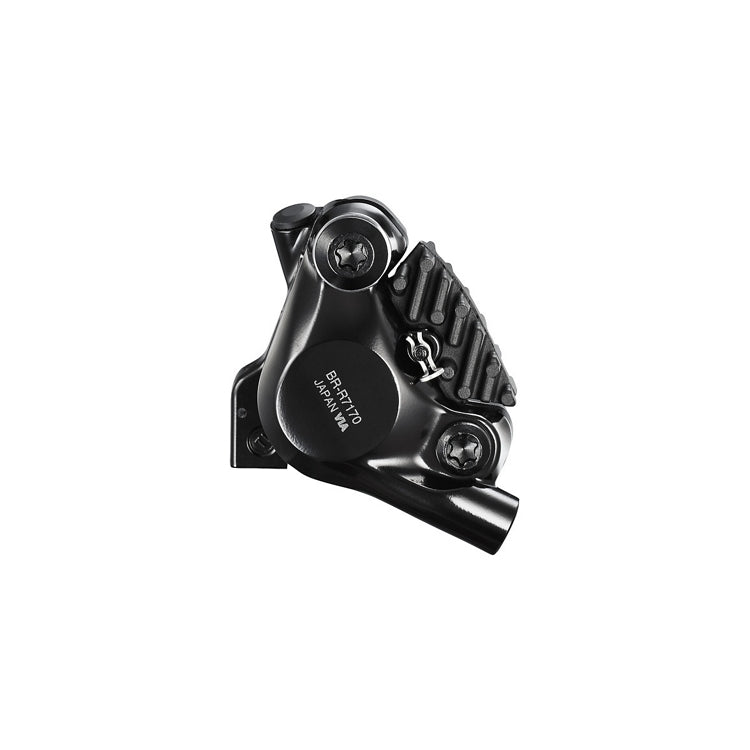

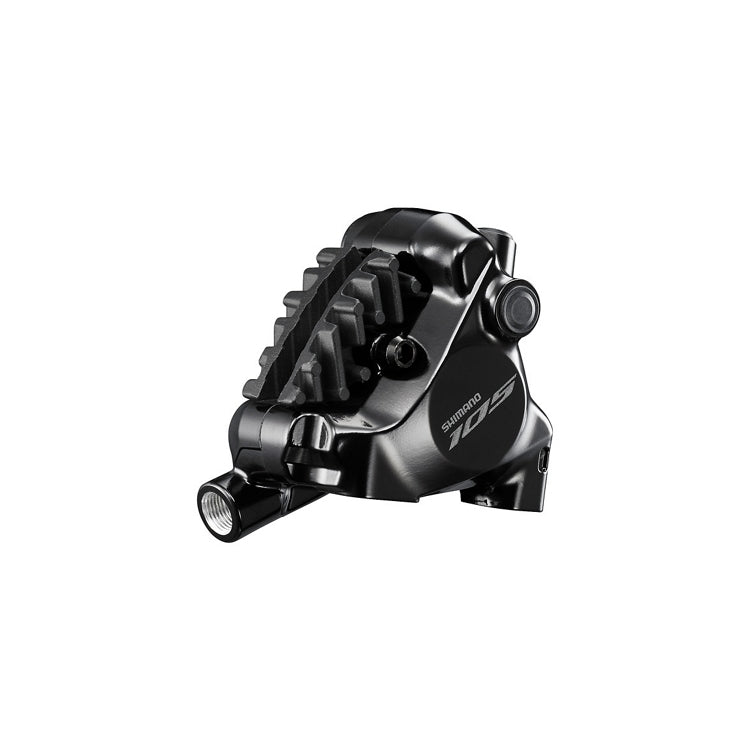

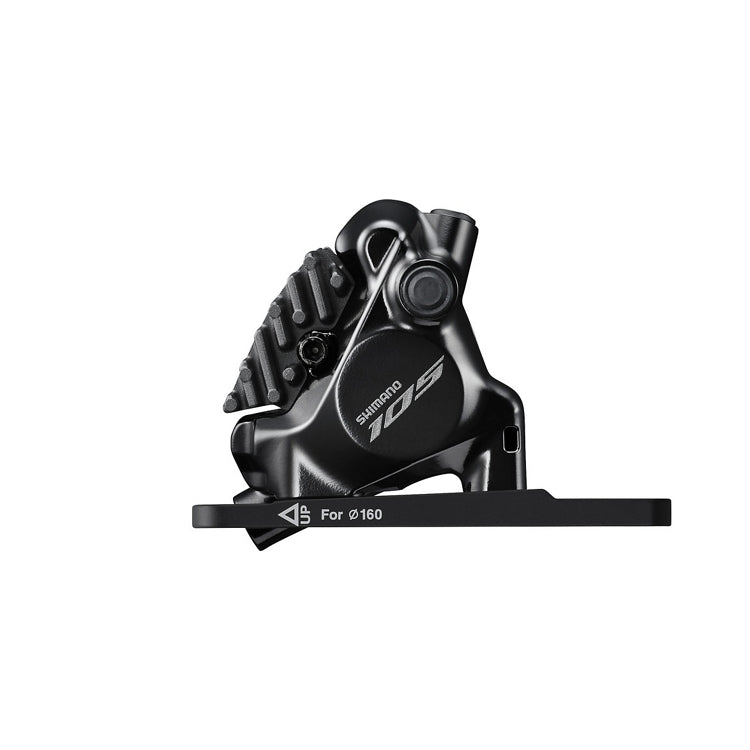

Shimano 105 BR-R7170 Hydraulic Disc Brake Caliper
| Model No. | BR-R7170 |
|---|---|
| Series | 105 R7100 Di2 Series |
| Color | Black |
| Average weight | 123g |
| Ice technologies pad compatible caliper | Yes |
| Brake hose color (kit) | Black |
| Brake hose (Kit) | SM-BH90-J-SSR / SM-BH90-JK-SSR |
| Brake type | Hydraulic disc brake |
| Caliper fixing bolt Anti loosen method | Screw fixing pin |
| Caliper fixing bolt Tool size | 4 mm |
| Fixing screw spec for rear mount 10mm mount | Yes |
| Fixing screw spec for rear mount 15mm mount | Yes |
| Fixing screw spec for rear mount 20mm mount | Yes |
| Fixing screw spec for rear mount 25mm mount | Yes |
| Fixing screw spec for rear mount 30mm mount | Yes |
| Fixing screw spec for rear mount 35mm mount | Yes |
| Hose joint | Straight |
| Mount type | Flat mount |
| One way bleeding | Yes |
| Pad mount | Pad axle |
| Piston | 2 |
| Recommended brake lever | ST-R7170 |
| Recommended disc brake rotor | SM-RT70 / SM-RT64 |
| J-Kit spec (for OEM) | Yes |
| Oil | Shimano Mineral |
| Pad Option 1 | L04C-MF Metal (w/ fin) |
| Pad Standard 1 | K05S-RX Resin (w/o fin) |
| Pad Standard 2 | L05A-RF Resin (w/ fin) |

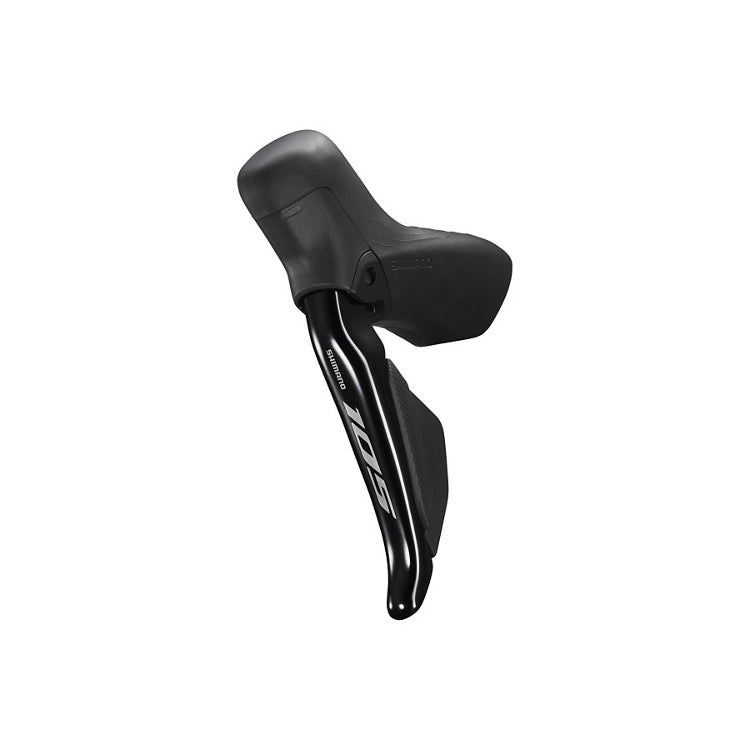

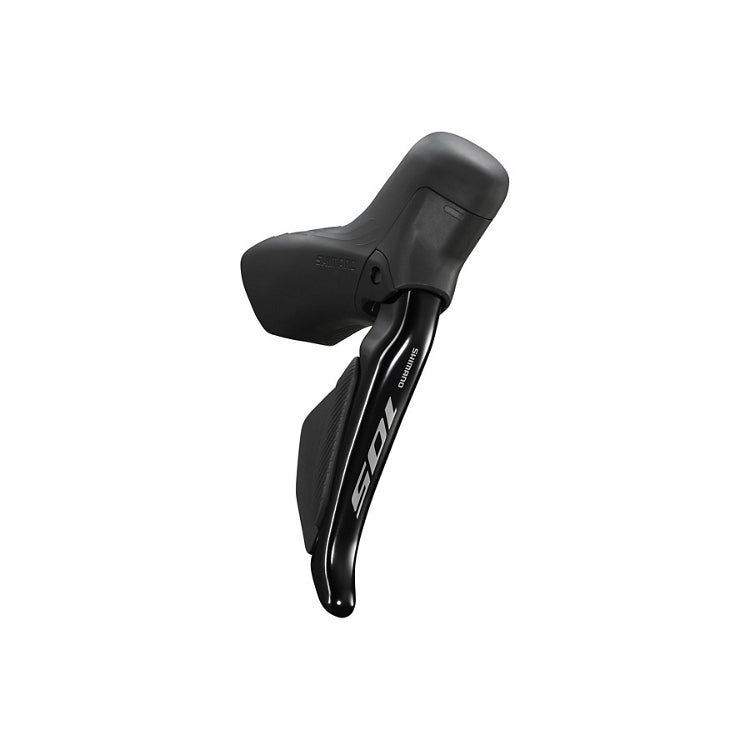

Shimano 105 ST-R7170 Di2 Hydraulic Disc Brake Dual Control Lever
| Model No. | ST-R7170 |
|---|---|
| Series | 105 R7100 Di2 Series |
| Color | Series color |
| Firmware update by E-tube project | Yes |
| Port for remote sprinter shifter (pcs) | 0 |
| Brake lever Clamp band (mm) | 23.8 - 24.2 |
| Brake lever Reach adjust | Yes |
| Brake lever Brake fluid Shimano Mineral Oil | Shimano Mineral |
| Brake lever specifications Brake hose color (kit) | Black |
| Brake lever Free stroke adjust | Yes |
| Brake lever Recommended brake caliper | BR-R7170 |
| Brake lever Brake hose (Kit) | SM-BH90-J-SSR / SM-BH90-JK-SSR |
| Brake lever Funnel bleeding | Yes |
| Brake lever Hose joint | Straight |
| Shifter type | Dual control lever |
| Battery | CR1632 x 2 |
| Di2 connectivity wireless_Di2 shifting | Yes |
| Port for SD300 satellite shifter (pcs) | 0 |
| SD300 connector (pcs) | 0 |
| SD300 port (pcs) | 1 |
| SD50 connector (pcs) | 0 |
| SD50 port (pcs) | 0 |
